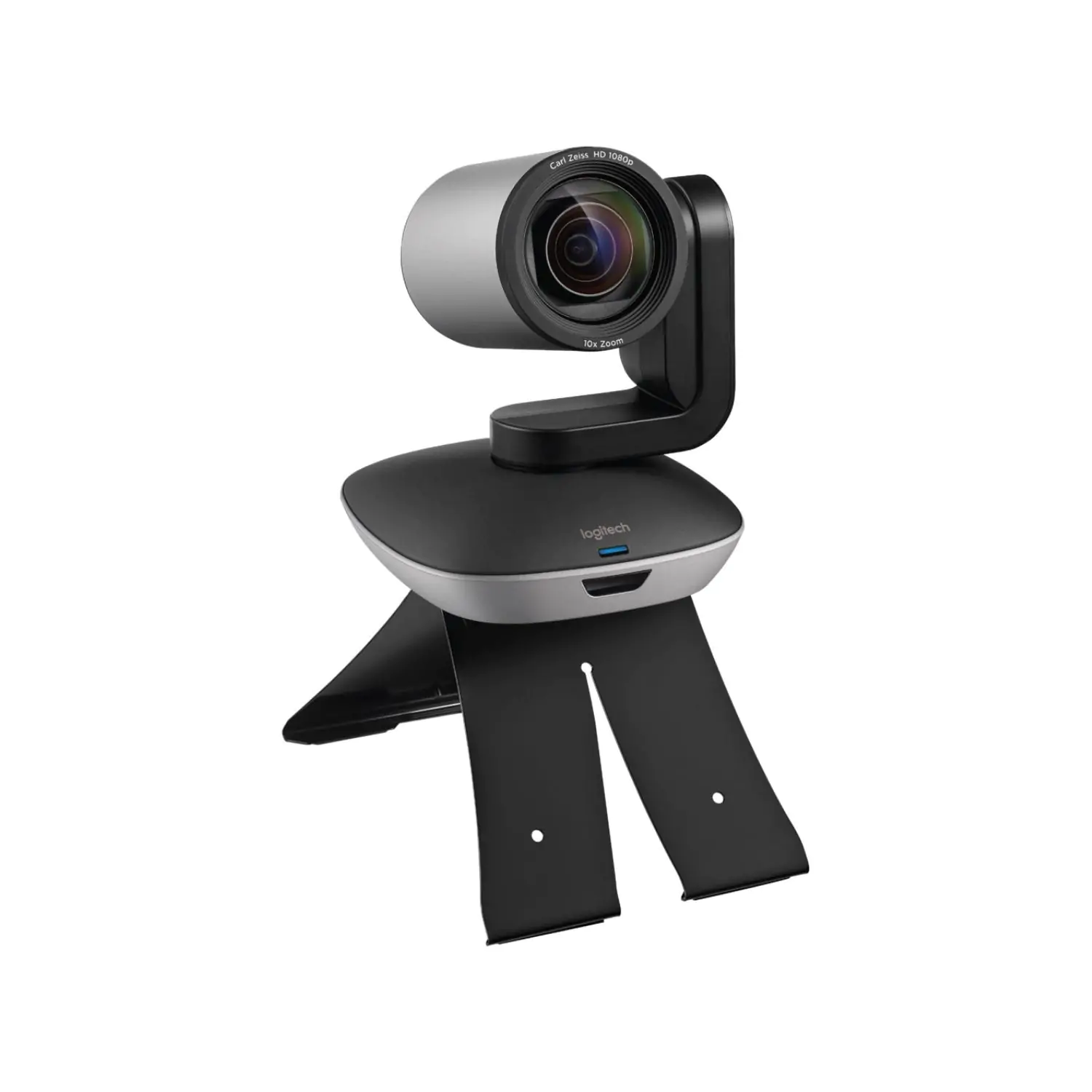

Camera

• Smooth motorized pan, tilt and zoom controlled from remote or console
• Pan +/- 90°
• Tilt +35° / -45
• 10x lossless HD zoom
• Field of View
  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2°
• Full HD 1080p 30fps
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Autofocus
• 5 camera presets
• Far-end control (PTZ) of ConferenceCam product (with supported services)
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread

• Remote Control

  • Camera, speakerphone, and call control
  • 5 camera presets
  • Docks on speakerphone
  • IR 8.5 m range
  • CR2032 battery (included)

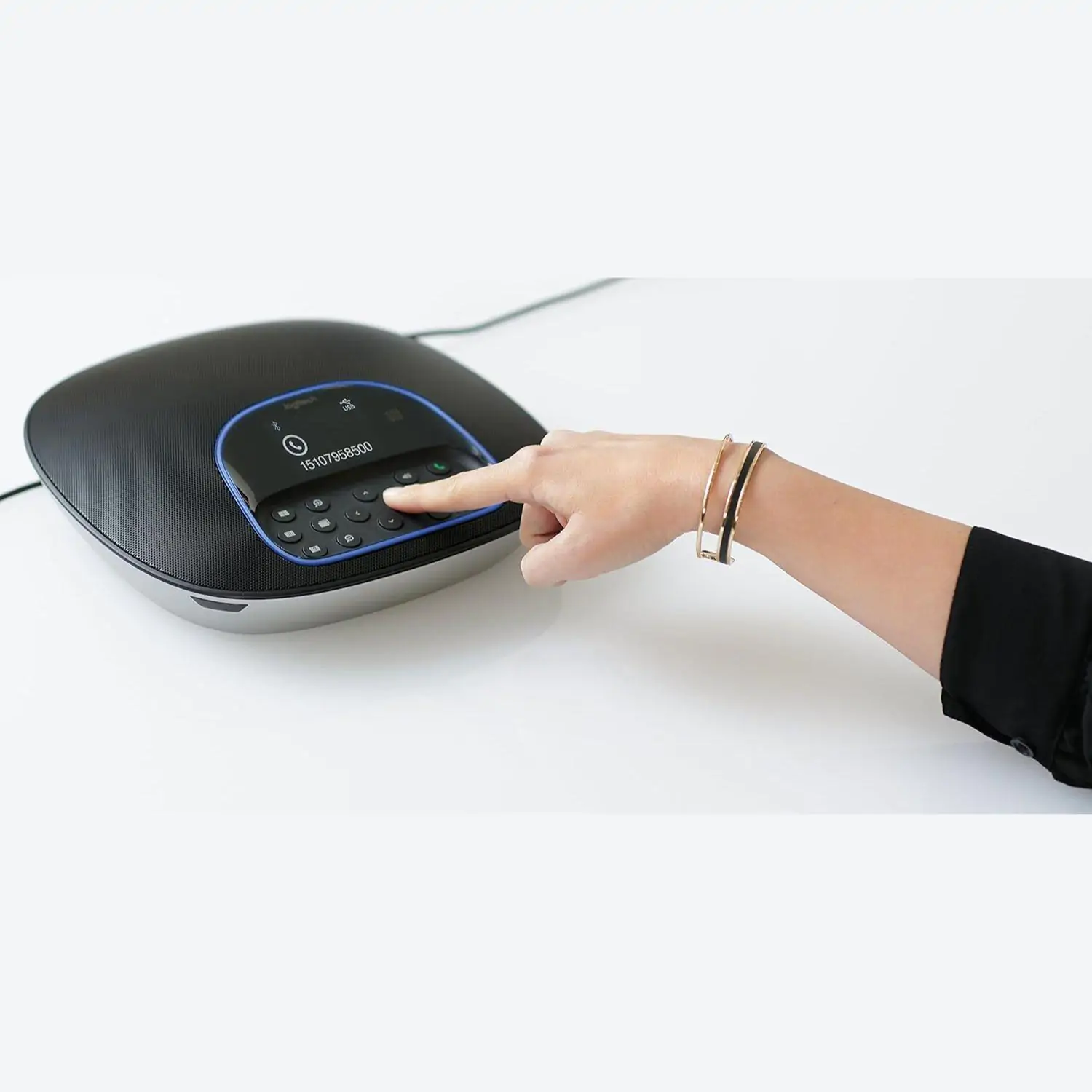

  SPEAKERPHONE

  • Full-duplex performance
  • Acoustic echo cancellation
  • Noise reduction technology
  • Ultra-wideband audio
  • Pairs with mobile devices via Bluetooth and NFC
  • LCD for caller ID, call duration and other functional response
  • LEDs for speakerphone streaming, mute, hold, and Bluetooth
  • Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
  • 5 camera presets for pan, tilt, and zoom settings
  • Kensington security slot

  Microphones

  • Pickup Range: 6 m
  • Pickup range with expansion mics: 8.5 m
  • Four omnidirectional, beamforming microphones
  • Frequency Response: 100Hz – 11KHz
  • Sensitivity: -28 dB +/-3dB
  • Distortion: <5% from 200Hz

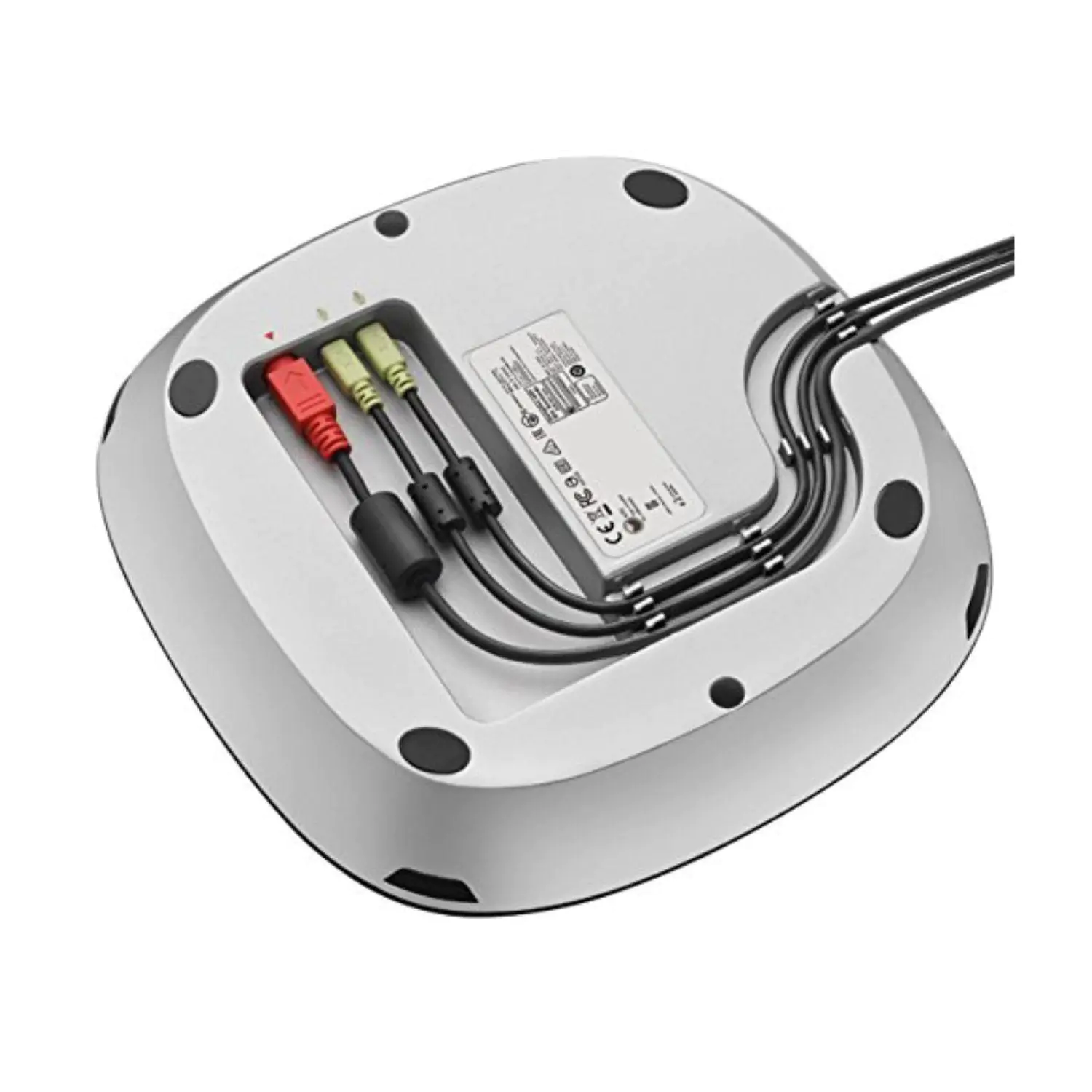

  HUB / CABLES / POWER

  • Central Hub connects and powers all components
  • Under-table mounting adhesive included
  • One cable to camera: 5 m
  • One cable to speakerphone: 5 m
  • Extended cables available: 10 and 15 m
  • One USB cable for connection to PC/Mac: 2 m
  • AC Power adapter with regional plugs
  • Power cable: 3 m

  MOUNT

  • Dual-purpose bracket works for both wall mounting and tabletop elevation

  COMPATIBILITY AND CERTIFICATIONS

  • Plug-and-play USB connectivity
  • Certified for Skype for Business and ready for Teams
  • Fuze® Certified
  • Microsoft Cortana
  • Cisco Jabber®
  • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

  • DIMENSIONS

    Camera

    • Height: 130 mm
    • Width: 170 mm
    • Depth: 138 mm
    • Weight: 585 g

    SPEAKERPHONE

    • Height: 240 mm
    • Width: 65 mm
    • Depth: 240 mm
    • Weight: : 1223 g

    Hub

    • Height: 94 mm
    • Width: 200 mm
    • Depth: 74 mm
    • Weight: 83 g

    Remote

    • Height: 50 mm
    • Width: 120 mm
    • Depth: 12 mm
    • Weight: 51 g

    Wall/Table Mount

    • Height: 210 mm
    • Width: 120 mm
    • Depth: 99 mm
    • Weight: 255 g

    Expansion Mics (Optional)

    • Height: 83 mm
    • Width: 83 mm
    • Depth: 21 mm
    • Weight: 230 g

  • COMPATIBILITY

    Windows® 7, 8.1 or 10

    macOS 10.10 or later

    PACKAGE CONTENTS

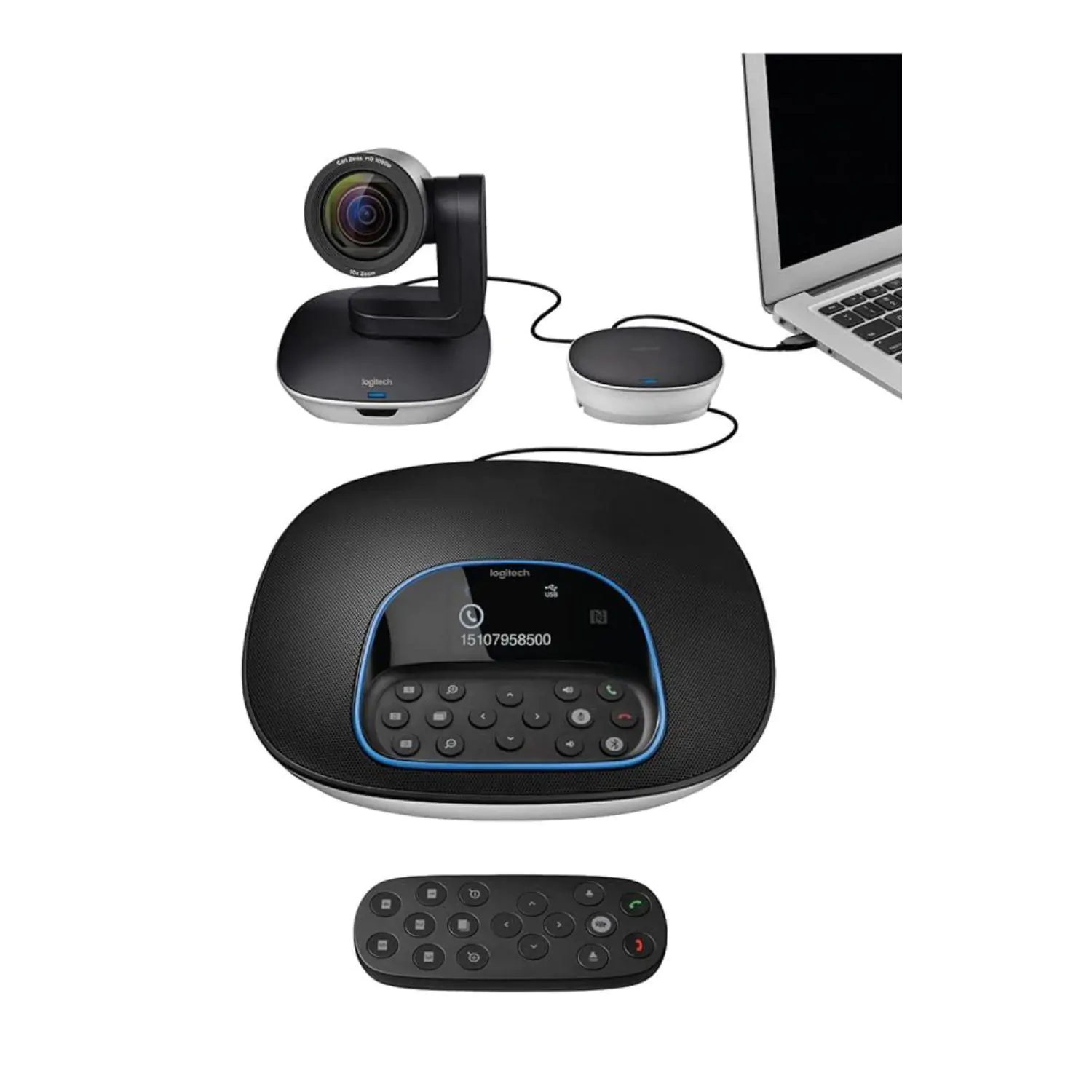

    • Camera
    • Speakerphone
    • Remote control
    • Two 5m cables for connection between speakerphone and hub and camera and hub
    • One 2m meter cable between hub and PC
    • Velcro for cable management
    • Velcro for hub to table securing
    • Powered hub
    • Power adapter with regional plugs and 3m
    • Mount
    • Documentation
    • Warranty card
