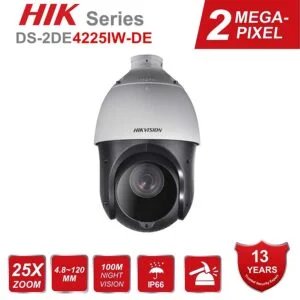

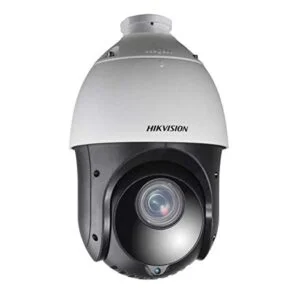

Hikvision DS-2DE4225IW-DE 2MP IR PTZ Dome CCTV camera for home & office At Best Price
Brand :
Recommended Uses For Product | Outdoor |
Brand | Hikvision |
Connectivity Technology | Wired |
Special Feature | Portable, Night Vision, PTZ Technology |
Indoor/Outdoor Usage | Outdoor |
Hikvision DS-2DE4225IW-DE CCTV camera for home & office 2MP 25× Network IR Speed Dome adopts 1/2.8″ progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Specification ;
Camera Module
Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time 50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens :
Focal Length 4.8 mm to 120 mm, 25× optical zoom
Zoom Speed Approx. 3.6 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 57.6° to 2.5°(Wide-Tele)
Vertical field of view: 34.4° to 1.4°(Wide-Tele)
Diagonal field of view: 64.5° to 2.9°(Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR :
IR Distance 100 m
Smart IR Support
PTZ :
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 80°/s,
Preset speed: 80°/s
Movement Range (Tilt) From -15° to 90°(auto-flip)
Tilt Speed Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan
3D Positioning Support
PTZ Position Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard :
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
G.711alaw/G.711ulaw: 64 Kbps
G.722.1/G.726: 16 Kbps
MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC Support
Smart Features :
Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting
Detection, Object Removal Detection, Unattended Baggage Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream, and third stream respectively support four fixed areas. CCTV camera for home & office
Image :
Max. Resolution 1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network :
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/
CIPS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface :
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)
General :
Power 12 VDC and PoE+ (802.3 at, class4)
Max.: 18 W (Max. 7W for IR)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material ADC 12, PC, PC+10% GF
Dimensions Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
Weight Approx. 2 kg (4.41 lb)
Weight | 5 kg |
---|---|
Dimensions | 44 × 22 × 22 cm |
